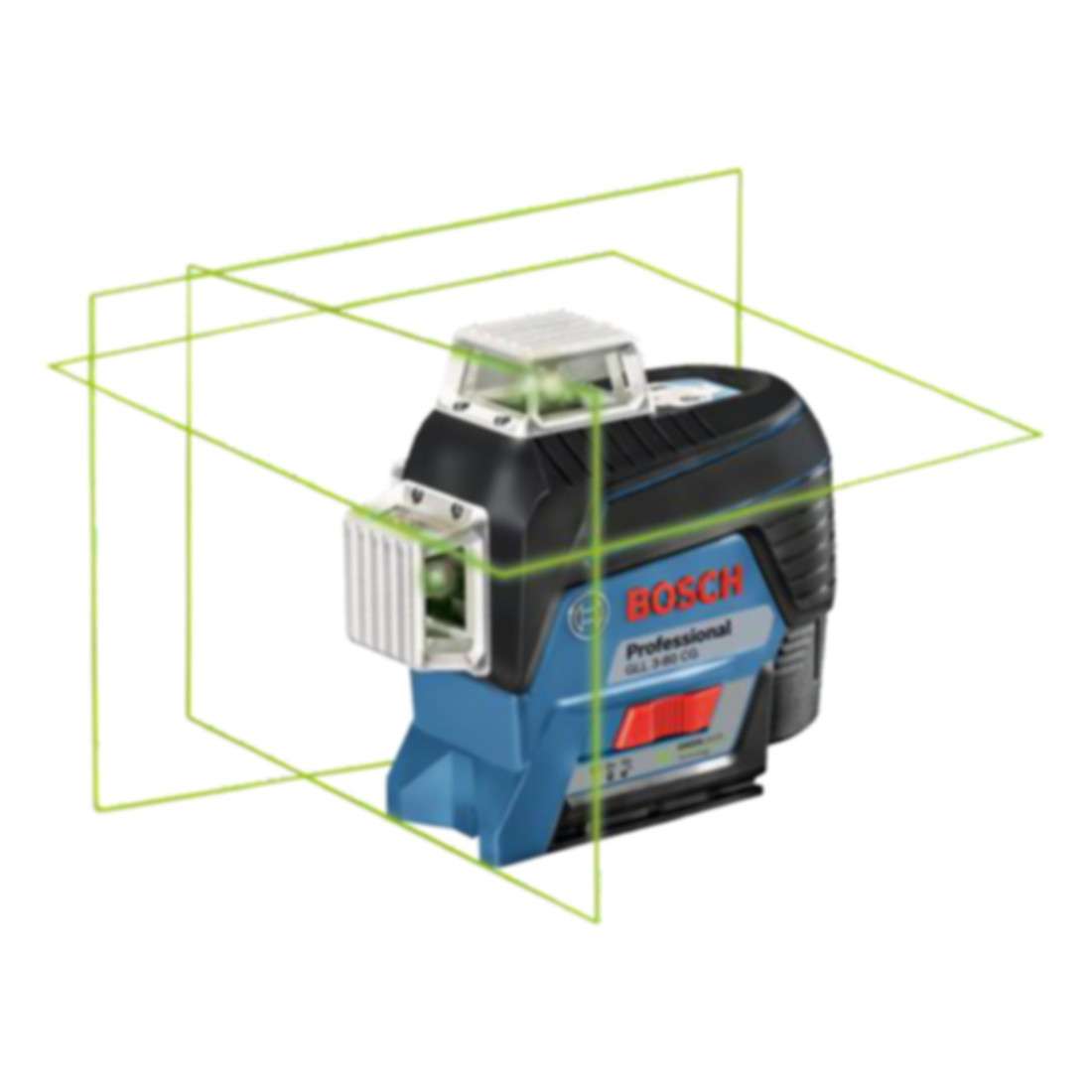

GLL 3-80 CG Professional
Bosch Point, Line and Rotation Laser
Up to four times better visibility due to the green laser lines |
Bluetooth® connection to your smartphone for remote control use and contactless adjustment of the tool |
High work efficiency due to 3 x 360° lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room |

ProductIntro1
ProductIntro1


Green supreme visibility in 3 x 360°. Simply connected.
TECHNICAL DATA
Liked this product?
Buy it right now!
Call or write to our helpdesk team and we will get back to you immediately! Its that simple!
ProductIntro2
FischerDetail1
Working range* |
Working range with receiver* |
Accuracy* |
Laser diode |
Operating temperature, from |
Operating temperature, up to |
Operating temperature |
Storage temperature, from |
Storage temperature, up to |
Storage temperature |
Laser class |
Working range with receiver, value |
Working range without receiver, value |
Working range without receiver |
Self-levelling range |
Levelling time |
Dust and splash protection |
Power supply |
Operating time (max.) |
Tripod thread |
Weight, approx. |
Colour of laser line |
Projection |
Compatible laser receivers |
30 m |
120 m |
± 0.2 mm/m |
500 – 540 nm, < 10 mW |
-10 �C |
40 °C |
-10 - 40�C |
-20 �C |
70 °C |
-20 - 70�C |
2 |
120 m |
30 m |
30 m |
± 4° |
4 s |
IP 54 |
12 V Li-Ion battery, 4 x 1.5 V LR6 (AA) |
6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode |
1/4", 5/8" |
0.9 kg |
green |
3 x 360° line |
LR 7 |
Working range* |
Working range with receiver* |
Accuracy* |
Laser diode |
Operating temperature, from |
Operating temperature, up to |
Operating temperature |
Storage temperature, from |
Storage temperature, up to |
Storage temperature |
Laser class |
Working range with receiver, value |
Working range without receiver, value |
Working range without receiver |
Self-levelling range |
Levelling time |
Dust and splash protection |
Power supply |
Operating time (max.) |
Tripod thread |
Weight, approx. |
Colour of laser line |
Projection |
Compatible laser receivers |
30 m |
120 m |
± 0.2 mm/m |
500 – 540 nm, < 10 mW |
-10 �C |
40 °C |
-10 - 40�C |
-20 �C |
70 °C |
-20 - 70�C |
2 |
120 m |
30 m |
30 m |
± 4° |
4 s |
IP 54 |
12 V Li-Ion battery, 4 x 1.5 V LR6 (AA) |
6 h (Li-Ion) and 4 h (4 x AA) in 3-line mode |
1/4", 5/8" |
0.9 kg |
green |
3 x 360° line |
LR 7 |
Up to four times better visibility due to the green laser lines |
Bluetooth® connection to your smartphone for remote control use and contactless adjustment of the tool |
High work efficiency due to 3 x 360° lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room |
Header1
Header1
Up to four times better visibility due to the green laser lines |
Bluetooth® connection to your smartphone for remote control use and contactless adjustment of the tool |
High work efficiency due to 3 x 360° lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room |
Green supreme visibility in 3 x 360°. Simply connected.
Advantages
Up to four times better visibility due to the green laser lines |
Bluetooth® connection to your smartphone for remote control use and contactless adjustment of the tool |
High work efficiency due to 3 x 360° lines: Simultaneous performance of horizontal and vertical levelling applications in the entire room |
Advantages
