EMF 150.1

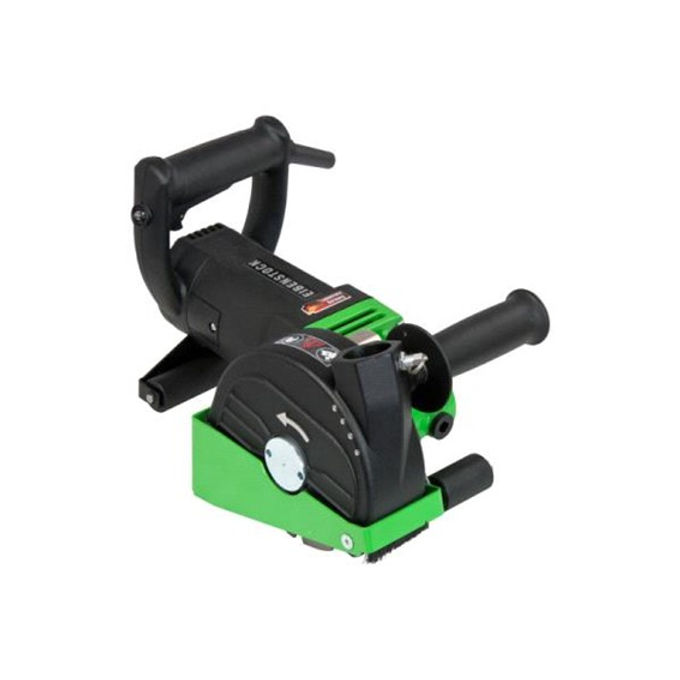

Wall Chaser


ProductIntro1


The powerful wall chaser up to 45 mm milling depth
ProductIntro2
Header1
FischerDetail1
SPECIFICATIONS
Rated Voltage (V) |
Power Input (W) |
Max. Slot Depth (mm) |
Max. Slot Width (mm) |
Disc Diameter (mm) |
Spindle Connection (mm) |
Rated Speed (rpm) |
No-load Speed (rpm) |
Weight (kg) |
230 |
2,300 |
45 |
46 |
150 |
22.2 |
4,300 |
7,500 |
6.1 |
Rated Voltage (V) |
Power Input (W) |
Max. Slot Depth (mm) |
Max. Slot Width (mm) |
Disc Diameter (mm) |
Spindle Connection (mm) |
Rated Speed (rpm) |
No-load Speed (rpm) |
Weight (kg) |
230 |
2,300 |
45 |
46 |
150 |
22.2 |
4,300 |
7,500 |
6.1 |
Header1
Powerful 2,300 W motor |
Electronic - soft start, temperature and over current cut-off, optical overload indication |
Parallel handle position - comfortable working position |
Locking for suction hose - avoids unintentional loosening of the hose during milling |
Adjustable milling depth - without the need for a tool |
Spindle lock - easy blade change |
Slim design, small distance between dust hood and diamond blades for working up to 15 mm from the edge |
Slot widths of 7-46 mm adjustable in 1 mm steps |
Closed hood - optimal air flow, easy removal of fragments |
Machine works in cutting direction - allows a comfortable handling |
EIBENSTOCK "Easy Break Out" - Fast breaking by a center slot - Distance disks for the using of 3 blades (accessory) |
Nozzle diameter Ø 35 mm - connection to the DSS industrial vacuum cleaner serie |
Powerful 2,300 W motor |
Electronic - soft start, temperature and over current cut-off, optical overload indication |
Parallel handle position - comfortable working position |
Locking for suction hose - avoids unintentional loosening of the hose during milling |
Adjustable milling depth - without the need for a tool |
Spindle lock - easy blade change |
Slim design, small distance between dust hood and diamond blades for working up to 15 mm from the edge |
Slot widths of 7-46 mm adjustable in 1 mm steps |
Closed hood - optimal air flow, easy removal of fragments |
Machine works in cutting direction - allows a comfortable handling |
EIBENSTOCK "Easy Break Out" - Fast breaking by a center slot - Distance disks for the using of 3 blades (accessory) |
Nozzle diameter Ø 35 mm - connection to the DSS industrial vacuum cleaner serie |
FEATURES
Milling of slots and ducts in concrete, sand-lime brick,brickwork |
Electrical installations |
Milling of slots and ducts in concrete, sand-lime brick,brickwork |
Electrical installations |
USE
FEATURES
Powerful 2,300 W motor |
Electronic - soft start, temperature and over current cut-off, optical overload indication |
Parallel handle position - comfortable working position |
Locking for suction hose - avoids unintentional loosening of the hose during milling |
Adjustable milling depth - without the need for a tool |
Spindle lock - easy blade change |
Slim design, small distance between dust hood and diamond blades for working up to 15 mm from the edge |
Slot widths of 7-46 mm adjustable in 1 mm steps |
Closed hood - optimal air flow, easy removal of fragments |
Machine works in cutting direction - allows a comfortable handling |
EIBENSTOCK "Easy Break Out" - Fast breaking by a center slot - Distance disks for the using of 3 blades (accessory) |
Nozzle diameter Ø 35 mm - connection to the DSS industrial vacuum cleaner serie |
USE
Nozzle diameter Ø 35 mm - connection to the DSS industrial vacuum cleaner serie |
Milling of slots and ducts in concrete, sand-lime brick,brickwork |
Electrical installations |
